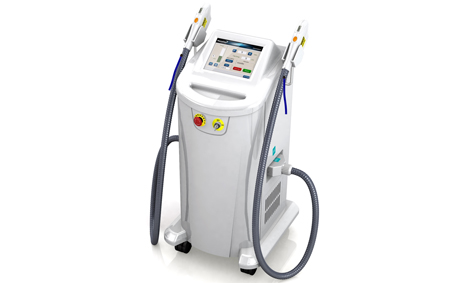

The SMQ-NYC III IPL therapy System is a high-intensity pulsed light treatment system.
The unit controlled by computer is composed of main console, operating Interface and treatment head.
The embedded microprocessor monitors can control the system continually.
The operating Interface includes a full-LCD screen (10.4 inch), the key switch and emergency shut-off knob.

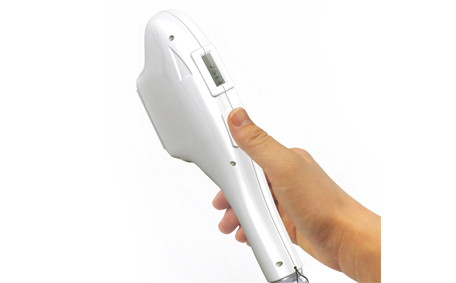

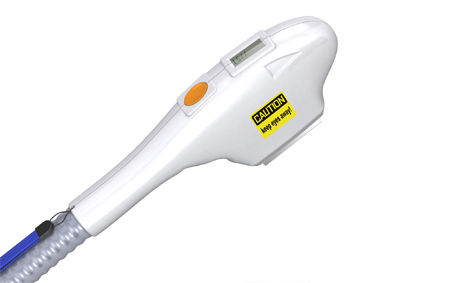

LCD screen both shows the system work program, treatment parameters and number of light emitting. The treatment head operated by hand comprises the intensive emitter and transmission system.
The system is designed by standard EN60601-1-2:2001 and EN60601-1:1990+ A1:1993+ A2:1995+ A13:1996.
1. Three operation modes: traditional IPL mode plus SHR and FP mode specially designed for sensitive areas.
2. 10.4 inch true color touch screen
3. Slim and delicate design handpieces
4. Safe, effective and virtually painless hair removal treatment experience
|
light source |
Xenon lamp |
|
Wavelength |
SR：560-1200nm/HR：690-1200nm |
|
Transfer system |
Crystal light guide |
|
Safety Category |
Class I Type B |
|
Pulse duration |
IPL：Up to 150ms SHR：1-10ms |
|
Repetition |
IPL Mode： 1Hz SHR Mode：10Hz |
|
The light mouth dimension |
8mm×34mm/16mm×57mm,error±0.2mm |
|
Surface temperature of the crystal |
≤37℃ |
|
Cooling system |
Semiconductor refrigerator , air cooling, water cooling |
|
Dimensions (L × W × H) |
490mm×525mm×952mm |
|
Weight (NW) |
40kg |
|
Fuse specifications |
F15AL，250V |
|
Input power |
2500VA |
|
Power |
AC230V, 50Hz |
