- Brief Introduction
- Advantages
- Specifications

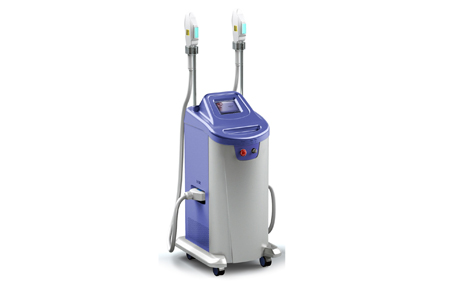

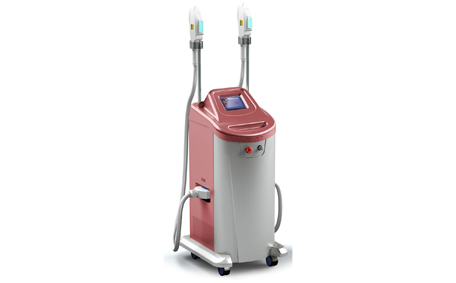

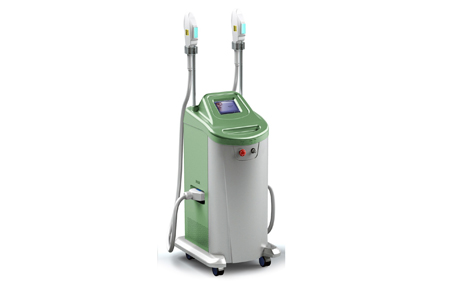

The SMQ-NYC IPL therapy System is a high-intensity pulsed light treatment system.
The unit controlled by computer is composed of main console, operating Interface and treatment head.
The embedded microprocessor monitors can control the system continually.
The operating Interface includes a full-LCD screen (8.0 inch), the key switch and emergency shut-off knob.
LCD screen both shows the system work program, treatment parameters and number of light emitting. The treatment head operated by hand comprises the intensive emitter and transmission system.
The system is designed by standard EN60601-1-2:2001 and EN60601-1:1990+ A1:1993+ A2:1995+ A13:1996.
1. TGA,FDA,CE cleared
2. big spot size HR treatment handle: 16 X 57mm ensure the Treatment time is reduced half
3. modularization design make it easier to do troubleshoot
4. The benefit of using the Med Pulse is unquestionable, resulting in treatments that are quick, comfortable and effective. And only Med Pulse feature the 3in1 Cooling Device (Semiconduction cooling,Buitl-in water cooling, and air cooling) to maximize your safety and comfort
5. 8.0 inch intuitive touchscreens offer friendly user interface
|
Light source |
Xenon Lamp |
|
Spectrum |
HR：690-1200nm SR：560-1200nm |
|
Pulse duration |
20-149.7ms |
|
Pulse Sequence |
2 or 3 Pulses |
|
Repetition |
≥0.5Hz |
|
Energy Density |
20-50J/cm² |
|
Spot Size |
16x57mm for HR 8x34mm for SR |
|
Cooling system |
Semiconductor cooling，Builtin water cooling and air cooling |
|
Skin cooling |
Contact skin cooling technology |
|
Electrical requirement |
230VAC 50HZ 1200VA |
|
Dimensions (W × D × H) |
490mm×525mm×1045mm |
|
Weight |
47kg |
