- Brief Introduction
- Advantages
- Specifications

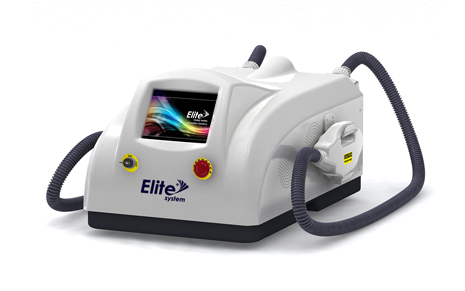

The unit controlled by computer is composed of main console, operating Interface and treatment head key switch,etc
LCD screen both shows the system work program, treatment parameters and number of light emitting.

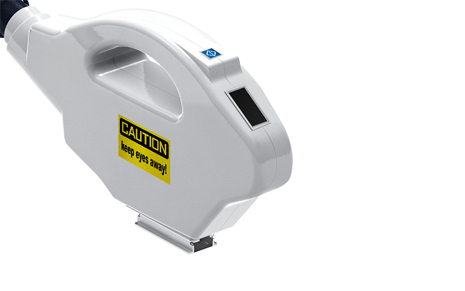

The treatment head operated by hand comprises the intensive emitter and transmission system.
2. Exact energy controlling system makes safer for various types of skin.
3. Low temperature cooling system makes more effective and safer.
4. Permanent hair removal for various hair color
5. High effective service.
6. Modularization design makes easier to check and fix.
Light source |
Xenon lamp |
Spectrum |
HR 690-1200nm SR 560-1200nm |
Pulse duration |
20-149.7ms |
Pulse Sequence |
2 or 3 Pulses |
Repetition |
≥0.5Hz |
RF power |
Up to 50W |
RF frequency |
10M Hz |
Energy density |
20-50J/cm² |
Spot size |
16×57 mm for HR 8×34 mm for SR |
Cooling system |
Semiconductor cooling, Built-in water cooling and air cooling |
Skin cooling |
Contact skin cooling technology |
Electrical requirement |
230VAC 50Hz 1300W |
Dimension(W×D×H) |
450mm×670mm×330mm |
Weight |
32kg |
