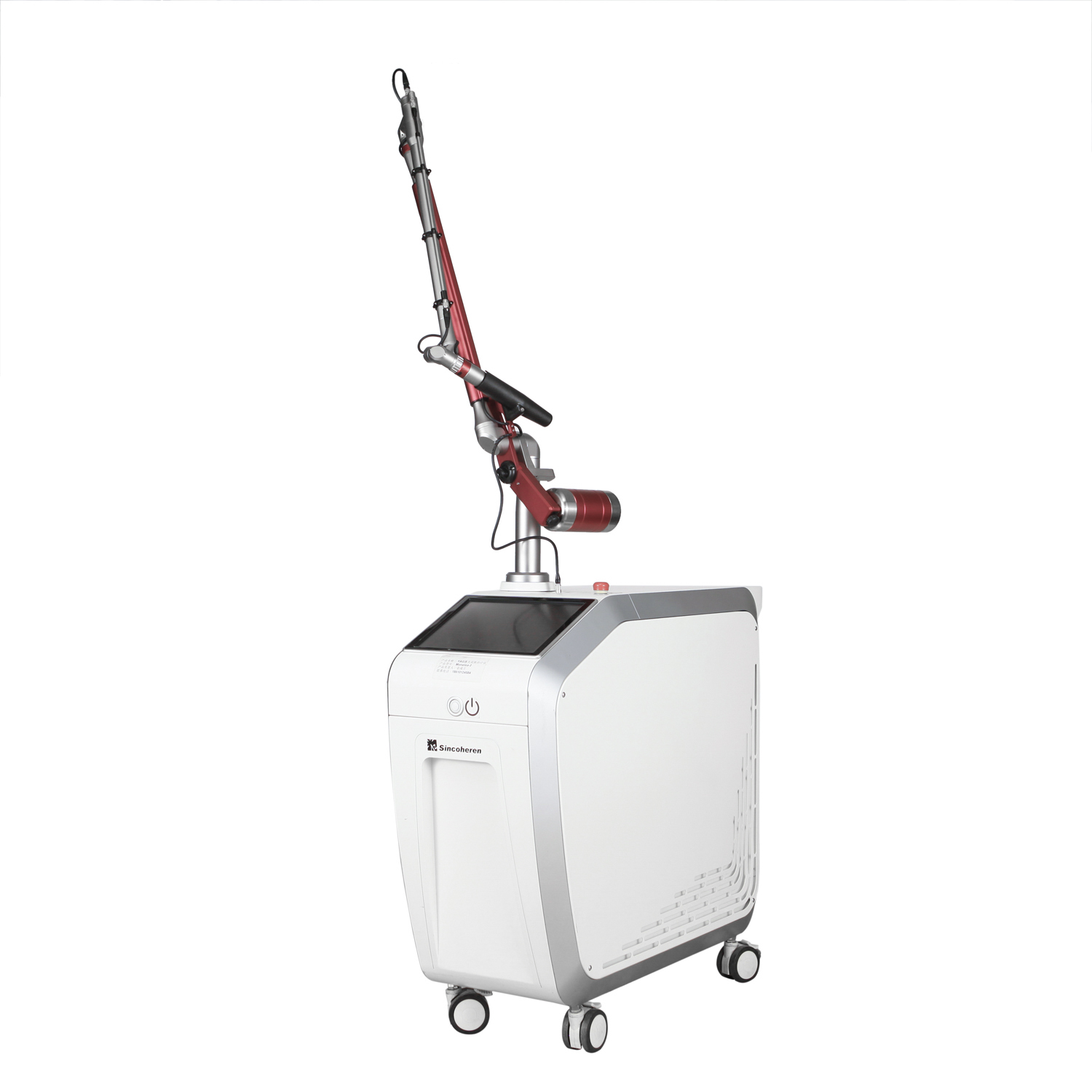

EX-QLaser™
Introduction
Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser.Therapy system lies in selective photothermolysis with melanin as the chromophore. Q-Switched Nd:YAG has higher Peak power and nanoseconds-level pulse width.Melanin in melanophore and cuticle formed cells have short hot relaxation time.It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Advantages
• Flat-top hat Beam • 10.4inch touch display & 7 joint articulate arm
• Real-time energy monitor & Auto-Calibration System
• Energy density is automatically adjusted with spot size
• Short pulse duration 5ns
• Adjustable spot size 2-10mm
• Stable power supply with High peak power
• Water Filtration System
Indications
• Melasma/Hyperpigmentation/ lentiginos / Speckle/Tattoo Removal etc.
• Port wine birthmarks /elangiectasias /Spider angioma /Cherry angioma Spider nevi etc.
• Carbon peeling treatment
• Skin rejuvenation /Balance uneven skin tones /Shrink pore
Technology
Principle of Treatment
Treatment principle for pigmented dermatosis of Q-Switched Nd : YAG Laser Therapy system lies in selective photothermolysis with melanin as the chromophore.
Q-Switched Nd : YAG has higher Peak power and nanoseconds-level pulse width.Melanin in melanophore and cuticle formed cells have a short hot relaxation time.It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Specification
Dimensions | 680× 400 ×820mm (not including joints arm) | Frequency | 1Hz, 2Hz, 5Hz |
Wastage power | 800VA | Single Pulse energy | 200mj-1000mj |
Fuse | 220V, 10A | Work mode | Continually work with intervals |
Output mode | Q-switch Pulsed output | Safety distance | NOHD 1km. Operator must wear goggles |
