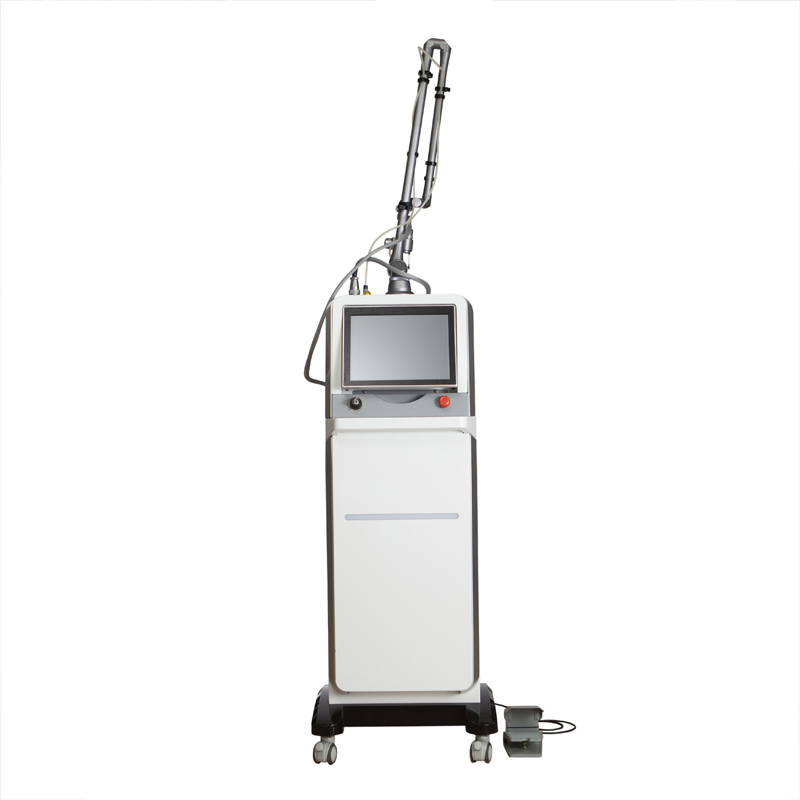

Pixel CO2
Application
1. Skin renewal and regeneration
2. All colors tattoo removal
3..Remove all kinds of wrinkles
4. Remove acne and scars
5. Remove neoplasms
6. Remove pigment
7.Treat telangiectasis
8. Sun damage recovery and skin renewing
9. Actenic keratoses
10. Face lift, tighten and whiten skin
11. Pierce ears
12. Effective treatment with skin hydroponic, skin rough
Technology
CO2 Fractional Laser Technology
Laser CO2 Frazionato
Fractional resurfacing is a new modality for laser treatment that creates numerous microscopic thermal injury zones with controlled width, depth, and density that are surrounded by a reservoir of spared epidermal and dermal tissue, allowing for rapid repair of laser induced thermal injury.
This unique modality, if implemented with proper laser delivery systems, enables high energy treatments while minimizing risks.
Specification
Wavelength | 10.6μm |
Power | 30W |
Indication beam | Diode laser (532nm,5mW) |
Micro Pulse Energy | 5MJ ~ 100 MJ |
Transmission System | 7-Ariculation Joint |
Scanning Mode | Scanning area: min 0.1 ×0.1mm max 20 ×20mm |
Scanninh graphic | Rectangular, Ellipse, Round, Triangle |
Handle piece Velocity | 0.1~9cm²/s |
Scan depth | <2mm |
Estimated power | 24mJ~1000J |
Continuous | 1~30W,step adjustable per 1W |
Pulse Interval time | 1~999ms, step adjustable per 1 ms |
Pulse duration | 90~1000μs |
Modulation Frequency | 1~999Hz, step adjustable per 1 Hz |
Cooling System | Built-in water cooling |
